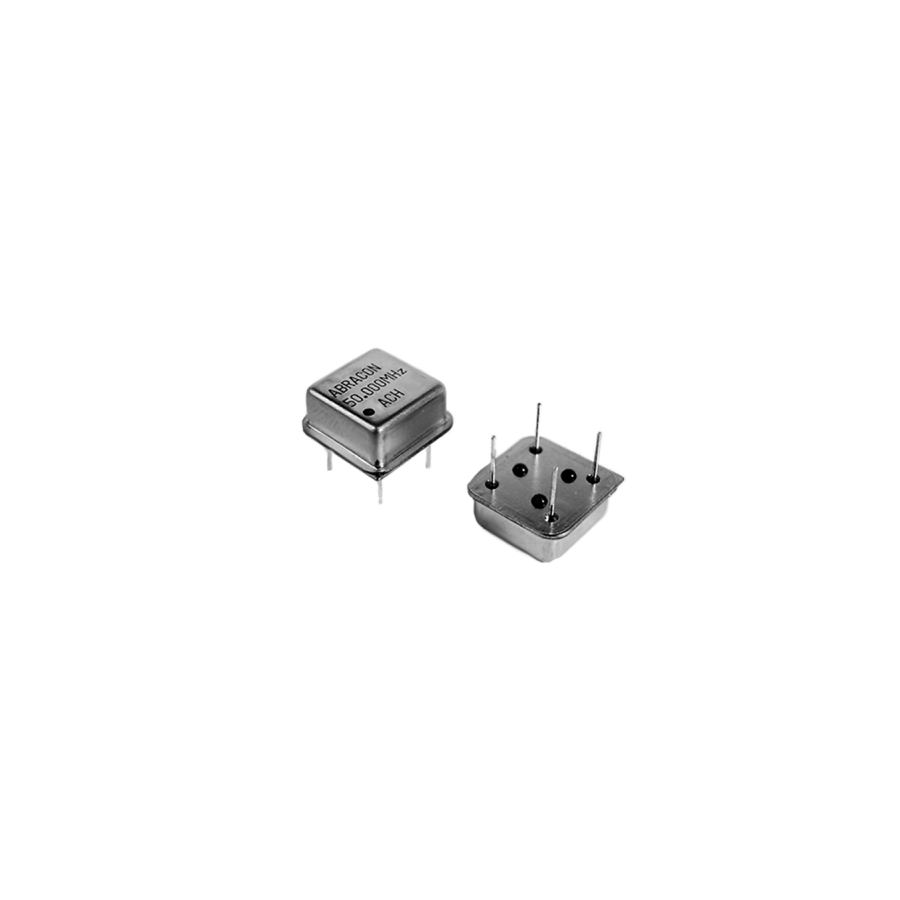

ACH-8.000MHZ-EK
Manufacturer:
Abracon Corporation
Mfr.Part #:
ACH-8.000MHZ-EK
Datasheet:
Description:
Oscillators DIP-8 Through Hole XO (Standard) 8 MHz
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 5.6 mm |
| Length | 12.7 mm |
| Width | 12.7 mm |
| Termination | Radial |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 4 |
| Height | 5.588 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Load Capacitance | 15 pF |
| Type | XO (Standard) |
| Operating Supply Voltage | 5 V |
| Output Type | TTL |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Nominal Supply Voltage (DC) | 5 V |
| Supply Current | 30 mA |
| Max Supply Current | 30 mA |
| Schedule B | 8542320050 |
| Output Format | HCMOS, TTL |
| Base Resonator | Crystal |
Stock: 421
Distributors
pcbx
pcbxUnit Price$2.61609
Ext.Price$2.61609
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.61609 | $2.61609 |
| 10 | $2.09030 | $20.90300 |
| 25 | $2.05900 | $51.47500 |
| 50 | $2.02817 | $101.40850 |
| 100 | $1.99780 | $199.78000 |
| 300 | $1.96789 | $590.36700 |
| 500 | $1.93843 | $969.21500 |
| 1000 | $1.90941 | $1909.41000 |
| 3000 | $1.88082 | $5642.46000 |
| 5000 | $1.85263 | $9263.15000 |
